The Set Field command is a behavior object found in the objects .
|
Settings
|
The settings section contains options for selecting the field to be set and providing a value for that field.
|

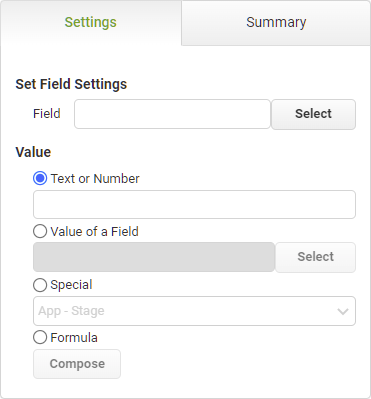

Set Field Settings
|
Object
|
Details
|
Additional Information
|
[Field Selection]
|
Click Select to choose the field you want to use for the Set Field command.
To select the desired field, click the Select button, then navigate to the field you want to choose. Once a selection has been made, the value will be shown in the read-only text box to the left of the Select button.
|
|
Value
|
Text or Number
|
Selection of this radio button enables you to enter a static text or numeric value to be used when the Set Field command runs.
If the value you want to use for the field will not be dynamic (based on app input or other options), it is appropriate to enter the text here.
|
|
Value of a Field
|
Selection of this radio button enables you to select a field from your app from which the value can be pulled.
To select the desired field, click the Select button, then navigate to the field containing the desired value. Once a selection has been made, the value will be shown in the read-only text box to the left of the Select button.
|
|
Special
|
Selection of this radio button lets you choose from a predefined list of app meta data that is universally available in apps to act as the field value. This includes special values such as Instance Name, Instance ID, URL, Current Date, etc.
|
Special Fields and Properties
|
Formula
|
Select this radio button then click Compose to provide a condition or formula as the field value. Formulas can use field values, dates, button states, or other special values.
|
Formulas
|
|
Summary
|
The summary section includes the option to override an automatically generated summary with your own comments.
|
Object
|
Details
|
Auto-summary
|
This option is selected by default, the system will automatically generate a summary that is show in the lower half of the object based on selections made.
Un-check this box if you want to add your own text instead.
|
|
To return to the Set Fields command details CLICK HERE.
