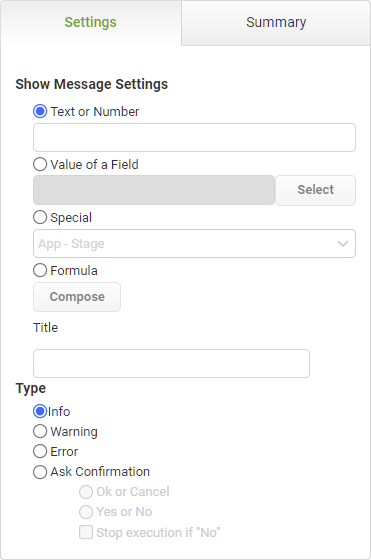

Show Message Settings
|
Object
|
Details
|
Additional Information
|
Text or Number
|
Selection of this radio button enables you to enter a static text or numeric value to be displayed when the Show Message command runs.
If the message you want to present to the app user will not be dynamic (based on app input or other options), it is appropriate to enter the message text here.
|
|
Value of a Field
|
Selection of this radio button enables you to select a field from your app from which the message text can be pulled.
To select the desired field, click the Select button, then navigate to the field containing the message text. Once a selection has been made, the value will be shown in the read-only text box to the left of the Select button.
|
|
Special
|
Selection of this radio button lets you choose from a predefined list of app meta data that is universally available in apps to act as the message text. This includes special values such as Instance Name, Instance ID, URL, Current Date, etc.
|
Special Fields and Properties
|
Formula
|
Select this radio button then click Compose to provide a condition or formula as the message text. Formulas can use field values, dates, button states, or other special values.
|
Formulas
|
[Title Text]
|
Enter the text that will be displayed on the Title bar of the message dialog.
|
|
Appendix Size
|
Info
|
Select this radio button to make the message type informational. Informational messages notify the app user of details that are useful and relevant, but never critical.
|
With this message type, an Information icon  will display with the message.
|
Warning
|
Select this radio button to make the message type a warning. Warning messages notify the app user of conditions that could potentially cause issues in the future.
|
With this message type, a warning icon  will display with the message.
|
Error
|
Select this radio button to make the message type an error. Error messages notify the app user of a problem that has already occurred. To be effective, an error message should explain to the user not only that a problem has occurred but also the reason why, so that he or she can take action to resolve the problem.
|
With this message type, an error icon  will display with the message.
|
Ask for Confirmation
|
Select this radio button to include buttons that prompt the user to make a decision and confirm the action.
Options associated with selection of this radio button include:
•OK or Cancel - Selection of this option will display OK and Cancel buttons on the message dialog. •Yes or No - Selection of this option will display Yes or No buttons on the message dialog. •Stop Execution if 'Cancel' - Select this check box to stop all behavior execution when the 'No' or 'Cancel' button is selected (depending on which set of buttons you chose to display).
|
With this message type, a confirmation icon  will display with the message.
|
