The Start / Stop command is a behavior object found in the objects .
|
Settings
|
|
The settings section enables you to select a timer, movie, or sound object and set the action to engage when the command runs.
|

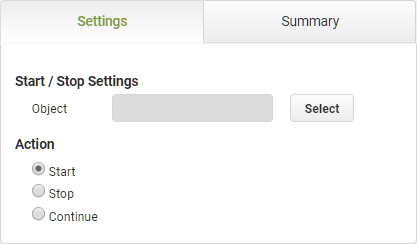

Start / Stop Settings
|
Object
|
Details
|
Additional Information
|
[Object Selection]
|
Click Select to choose the timer, movie or sound object you want to start or stop when the command runs.
To select the desired object, click the Select button, then navigate to the object you want to choose. (The OK button on the 'Select an Object' dialog will remain disabled until you've selected a timer, movie or sound object.)
Once a selection has been made, the value will be shown in the read-only text box to the left of the Select button.
|
|
Action
|
Start
|
Select this radio button to have the object start playback when the Start/Stop command runs.
|
|
Stop
|
Select this radio button to have the object stop playback when the Start/Stop command runs.
|
|
Continue
|
Select this radio button to have the object continue playback when the Start/Stop command runs.
|
|
|
Summary
|
|
The summary section includes the option to override an automatically generated summary with your own comments.
|
Object
|
Details
|
Auto-summary
|
This option is selected by default, the system will automatically generate a summary that is show in the lower half of the object based on selections made.
Un-check this box if you want to add your own text instead.
|
|
To return to the Start/Stop command details CLICK HERE.
