The Value object is report layout object found in the reporting .
|
Attributes
|
|
The Attributes section includes the object name.
|
Name
|
Enter a name for the object. This is the name of the object as it will show in field chooser, the Navigation panel and other object lists.
|
|
Behaviors
|
|
The Behavior section lists possible events on the object that can prompt a behavior to run.
|
Value is clicked
|
This event occurs when an app user clicks on the object.
|
Value is shown
|
This event occurs when the object is shown. This is often when the object's page is opened.
|
|

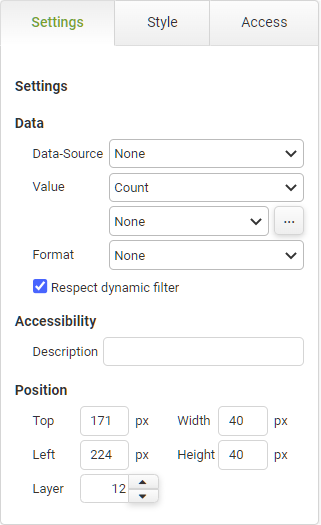

Settings
|
|
The settings section includes the , fields to report on, filtering, accessibility and positioning of the object.
|
Value Settings - Data
|
Object
|
Details
|
Additional Information
|
Data Source
|
All reporting objects must point to a data source. If you only have defined one then this will be automatically selected.
|
|
|
Although you can have multiple data sources in a report each reporting object can only point to a single data source.
|
|
Value
|
The aggregate function used to calculate the cell content (Sum, Count etc.) and the field or field expression that the function applies to.
|
|
Format
|
Optionally format the field in the report.
|
Choose from:
•Number •Percentage
|
|
Other options available to select will not produce meaningful results.
|
|
Respect dynamic filter
|
Causes the object to listen to any drill-down filter that is caused by the user clicking on a report object that has the Can Set Dynamic Filter option selected. If you do not want the object to filter its data when the drill-down occurs then turn off this property.
|
|
Accessibility
|
Description
|
Enter text that will be read aloud or converted to Braille for JAWS users.
|
Accessibility and JAWS Compatibility
|
Position
|
Top
|
Displays the object's location in from the top of the app (in pixels).
|
|
Left
|
Displays the object's location in from the left margin of the app (in pixels).
|
|
Width
|
Shows the width of the object.
|
The width cannot be less than 10px.
|
Height
|
Shows the height of the object.
|
The height cannot be less than 10px.
|
Layer
|
Indicates the layer number this object occupies. You can drag an object so that it fully or partially covers another object. Depending on the layer number it occupies, it may be positioned underneath another other object.
|
|
|

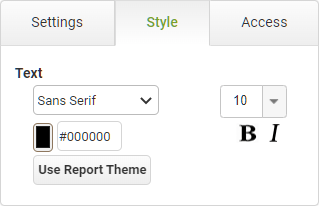

Style
|
|
The Style section contains properties that control the text.
|
Object
|
Details
|
Additional Information
|
|
|
Select the font face for the text.
|
|
|
|
Choose the size of the font for the text.
|
Manually enter font sizes smaller than the minimum selectable in the drop-down.
|
|
|
Enter a Hex color code or click on the color box to pick a color for the text.
|
|
|
|
Choose the style of the font for the text.
|
|
Use Report Theme
|
Resets the appearance options to the default settings configured on the report's Theme properties.
|
Applying or Resetting a Theme
|
|
Access
|
|
The Access section contains properties for field state management.
|
State
|
Object
|
Details
|
Additional Information
|
|
|
Choose from Default, Normal or Hidden for Value objects..
|
|
|
To return to the Value object details CLICK HERE.
