The Captcha object is an app layout object found in the containers . .
|
Attributes
|
|
The Attributes section includes the object name.
|
Name
|
Enter a name for the object. This is the name of the object as it will show in field chooser, the Navigation panel and other object lists.
|
|
|
We strongly recommend that each input object is given a suitable and unique name that reflects the data that will be held within it. The object name will, very likely, be referred to when adding behavior and workflow logic as well as when designing reports.
|
|
Behaviors
|
|
The Behavior section lists possible events on the object that can prompt a behavior to run.
|
Captcha is Shown
|
This event occurs when the captcha object is shown. This could be when the app is loaded or refreshed.
|
|

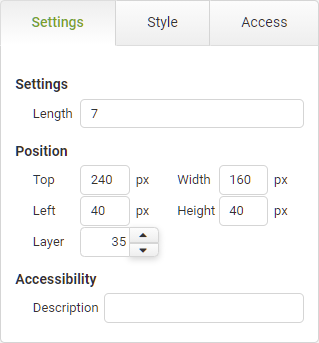

Settings
|
|
The settings section includes the length, position and accessibility.
|
Captcha Settings
|
Object
|
Details
|
Additional Information
|
Length
|
Enter the numeric character length of the captcha object.
|
|
Position
|
Top
|
Displays the object's location in from the top of the app (in pixels).
|
|
Left
|
Displays the object's location in from the left margin of the app (in pixels).
|
|
Width
|
Shows the width of the object.
|
|
Height
|
Shows the height of the object.
|
The height cannot be less than 30px.
|
Layer
|
Indicates the layer number this object occupies. You can drag an object so that it fully or partially covers another object. Depending on the layer number it occupies, it may be positioned underneath another other object.
|
|
Accessibility
|
Description
|
Enter text that will be read aloud or converted to Braille for JAWS users.
|
Accessibility and JAWS Compatibility
|
|
Style
|
|

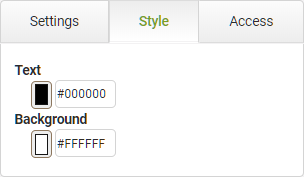

The Style section contains properties that control the appearance of the object.
|
Text
|
Object
|
Details
|
Additional Information
|
|
|
Enter a Hex color code or click on the color box to pick a default color for the caption text.
|
|
Background
|
|
|
Enter a Hex color code or click on the color box to pick a background color for the object.
|
|
|
Access
|
|
The Access section contains properties for field state management.
|
|
To return to the Captcha object details CLICK HERE.
